Bobcat 2200 UTV Hi-Rail System
Nebraska Public Power
Design of pin-on front and rear hi-rail system for Bobcat UTV
Rail Removal Dollies
Dragados/Judlau
System engages rail and lifts via air bags, to clear rail in tunnel and temporarily relocate while invert is cleaned
Electric Locomotive
McNally Tunneling – Port Mann
Conceptual design and proposal for 100 HP battery powered electric locomotives
Equipment Transporter
Dragados/Judlau
Couples to Loci and transports large equipment into 22′ diameter tunnel. Side shift and life features provide ability to quickly avoid tunnel obstructions.
- Capacity = 140 tons
- Side Shift Stroke = 30″
- Lift Stroke = 12″
Drop Deck Transporter
Dragados/Judlau
Capacity 50,000 lbs. Deck Length 20 ft. Removable gooseneck
12 Ton Locomotive Differential Axle
Mining Equipment, LTD
Design of custom axle assembly utilizing standard differential
25 Ton Locomotive
Mining Equipment, LTD
Chassis and packaging design of custom 25 ton locomotive
Loci Extension/Seat Extension
Traylor/Skanska/Jay Dee
Design of locomotive extension to provide additional seating
Tie Remover
Kiewit
Removes rail ties from existing subway lines. Client designed with engineering peer review, design enhancements, and production drawings provided by Kelley Engineered Equipment, LLC
High Rail Gator Rescue Vehicles
Dragados/Judlau
Gators outfitted with hydraulic actuated high rail. Flat bed installed to transport injured personnel.
Rail Grinder Positioning System
Superior Sales & Services
Design for system positioning grinder for post weld processing of welded rail connections
Spiker Modification
Kiewit
Rail spiker modification for installin spikes in 3rd rail track

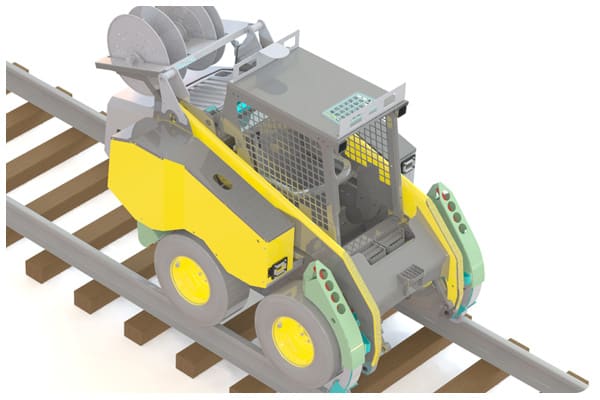

Skid Steer High Rail
Nebraska Machinery
Hydraulically deployed rail wheel system
Car Passer
Wolf Hills
Conceptual Design and estimate for 24″ gauge car passer
Conceptual Design and estimate for 24″ gauge car passer
Dragados/Judlau
Plan and custom fixtures for transporting and installing 80 ton crusher
Rail Handler
Kiewit
Design of rail handler for handling rail assemblies in tunnel
Segment Handling Cars
Kiewit
Design of segment/consumable handling cars
